Wraysbury Wattage Selectable

The Wraysbury Backlit LED Panel delivers powerful, flexible lighting performance with selectable wattage options and high efficacy output of 120Lm/W. With wattage selection and multiple colour temperature options, Wraysbury adapts easily to a wide variety of applications — from offices and schools to retail and healthcare settings.


Panel

5 Year Product Warranty

Core Features

Wattage Selectable

22W/26W/30W/24W &
40W/46W/52W/58W

3CCT Selectable Options

3000k, 4000K & 6000K

Ingress Protection

IP44

Beam Angle

95º

Glare Reducing

UGR <19

£0.00 GBP - Website Price List

Wraysbury Wattage Selectable

Product Code Description Wattage Kelvin Lumens LM/W Downloads
421423-MP Wraysbury Wattage Selectable Backlit Panel 600x600 18 / 23 / 28 / 34 5000 2,150 / 2,750 / 3,350 / 4,000 120 View Variant
Wraysbury Backlit Panel 600x600 18W/23W/28W/34W 5000K White UGR TP(a) 10 Pack
0.0 GBP
421422-MP Wraysbury Wattage Selectable Backlit Panel 600x600 18 / 23 / 28 /34 4000 2,150 / 2,750 / 3,350 / 4,000 120 View Variant
Wraysbury Backlit Panel 600x600 18W/23W/28W/34W 4000K White UGR TP(a) 10 Pack
0.0 GBP
421424-MP Wraysbury Wattage Selectable Backlit Panel 600x600 18 / 23 / 28 /34 3000 / 4000 / 6000 2,150 / 2,750 / 3,350 / 4,000 120 View Variant
Wraysbury Backlit Panel 600x600 18W/23W/28W/34W 3CCT White UGR TP(a) 10 Pack
0.0 GBP

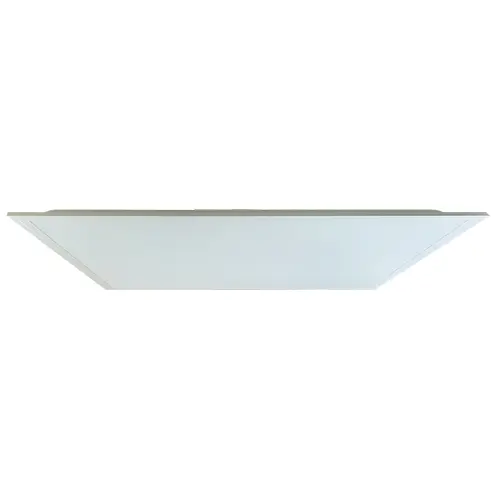

421425 Wraysbury Wattage Selectable Backlit Panel 1200x600 40 / 46 / 52 / 58 3000 / 4000 / 6000 4800 / 5520 / 6240 / 6960 120 View Variant
Wraysbury Backlit Panel 1200x600 40W/46W/52W/58W 3CCT White UGR TP(a)
0.0 GBP

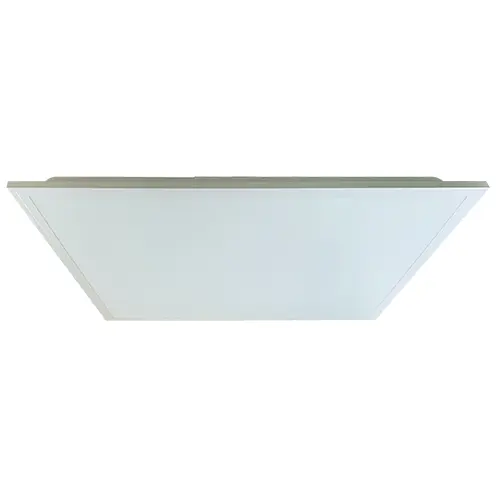

421424 Wraysbury Wattage Selectable Backlit Panel 600x600 18 / 23 / 28 / 34 3000 / 4000 / 6000 2,150 / 2,750 / 3,350 / 4,000 120 View Variant
Wraysbury Backlit Panel 600x600 18W/23W/28W/34W 3CCT White UGR TP(a)
0.0 GBP
421423 Wraysbury Wattage Selectable Backlit Panel 600x600 18 / 23 / 28 / 34 5000 2,150 / 2,750 / 3,350 / 4,000 120 View Variant
Wraysbury Backlit Panel 600x600 18W/23W/28W/34W 5000K White UGR TP(a)
0.0 GBP
421422 Wraysbury Wattage Selectable Backlit Panel 600x600 18 / 23 / 28 / 34 4000 2,150 / 2,750 / 3,350 / 4,000 120 View Variant
Wraysbury Backlit Panel 600x600 18W/23W/28W/34W 4000K White UGR TP(a)
0.0 GBP
